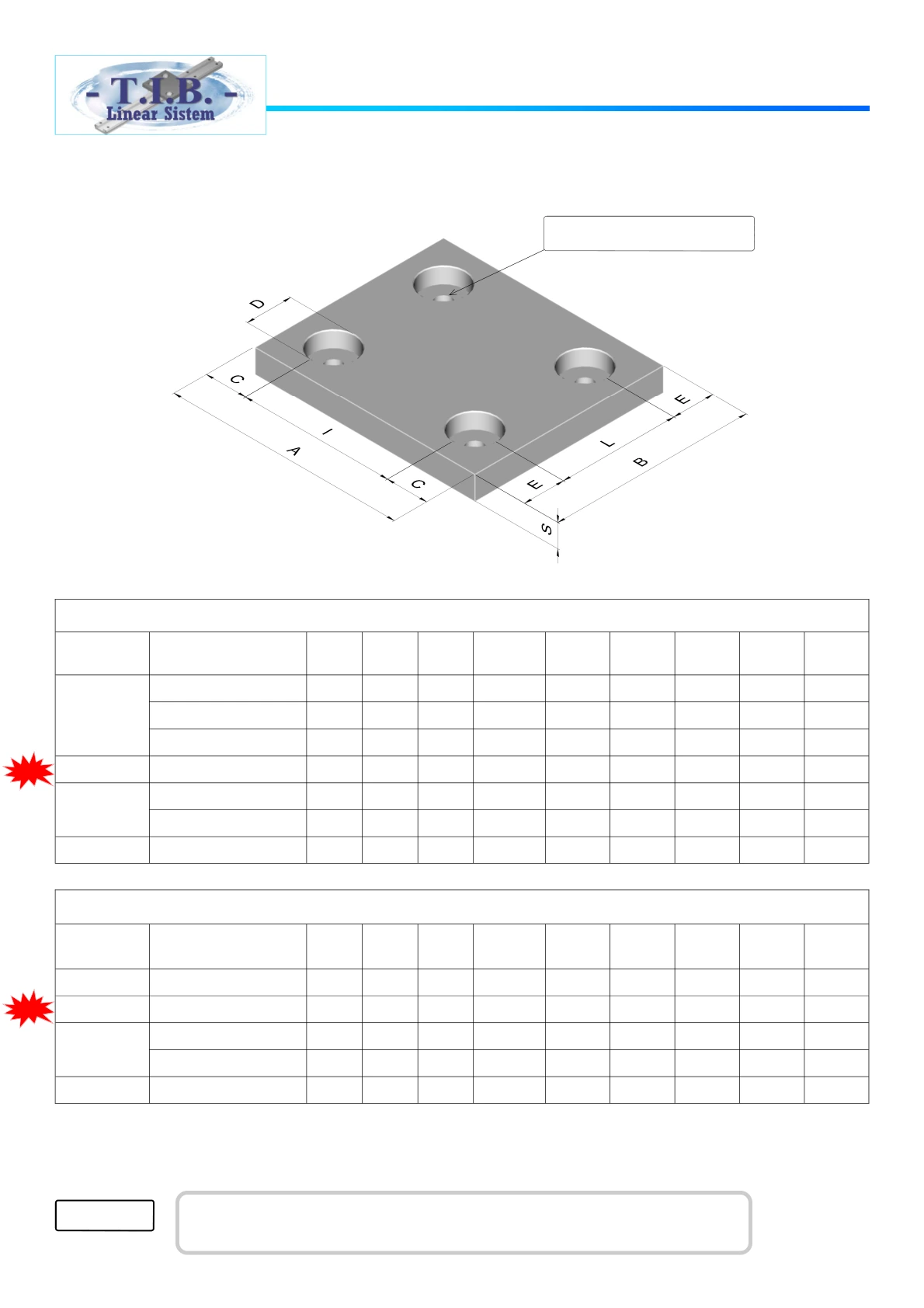

TLB trasmissioni s.r.l. Tel. +39 380 694 7342 WEB SITE: www.tlb-trasmissioni.com E-mail: tlb.trasmissioni@gmail.com Piastre per carrelli Per specifiche sulle piastre TIB andare a pagina 10 Piastre in Alluminio codice cod. Piastra A ( mm ) B ( mm ) C ( mm ) I ( mm ) L ( mm ) E ( mm ) D ( mm ) d h7 ( mm ) S ( mm ) TIB10R31 PATIB-140x120x15 140 120 25 90±0.1 70 25 27 10 15 PATIB-140x150x20 140 150 25 90±0.1 100 25 27 10 20 PATIB-150x250x20 150 250 30 90±0.1 200 25 27 10 20 TIB10R39 PATIB-150x120x20 150 120 26 98±0.1 70 25 32 12 20 PATIB-180x150x20 180 150 27 126±0.1 90 30 32 12 20 PATIB-200x250x20 200 250 37 126±0.1 190 30 32 12 20 TIB20R58 PATIB-200x200x25 200 200 30 140±0.1 120 40 37 16 25 TIB20R41 Piastre in Ferro cod. Piastra A ( mm ) B ( mm ) C ( mm ) I ( mm ) L ( mm ) E ( mm ) D ( mm ) D h7 ( mm ) S ( mm ) TIB10R31 PFTIB-140x120x15 140 120 25 90±0.1 70 25 27 10 15 TIB20R41 PFTIB-180x150x20 180 150 27 126±0.1 90 30 32 12 20 PFTIB-180x250x20 180 250 37 126±0.1 190 30 32 12 20 TIB20R58 PFTIB-200x200x25 200 200 30 140±0.1 120 40 37 16 25 TIB10R39 PFTIB-150x120x20 150 120 26 98±0.1 70 25 32 12 20 N° 4 fori d h7 News News Pag. 17

Piastre per carrelli TIB
